MGW12C HIWIN 3d Printer Guide Rails 12mm Size Linear Block Carriage

Brand Name : HIMIN

Model Number : MGW12C

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 10

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : MGW-Enlarged width type

Model Size(mm) : 12mm

No. of Blocks per Rail : 1

Rail Mounting Type : R- Mounting From Top

Rail Length(mm) : Max 2000mm

Preload Class : Z0- Very Light Preload , ZF- Light Clearancer

Material : Std- Carbon Steel , M- Stainless Steel

Dust Protection : SS-standard

Y -Symmetrical (E1＝E2) First hole dimension : Y= Symmetrical （E1=E2)

Installation : Easy

Application : CNC Machines, 3D printer

Smoothness : Smooth

Contact Now

①MGW12C HIWIN Miniature Linear Guideway 12mm Linear Block Carriage

Crafted with HIWIN's legendary precision in Taiwan, the MGW12C 12mm Linear Guideway represents the gold standard in compact motion solutions for demanding industrial applications. This premium linear block carriage incorporates HIWIN's decades of innovation, delivering unmatched smoothness and reliability in a space-efficient design.

The MGW12C features HIWIN's proprietary recirculating bearing technology, ensuring vibration-free operation perfect for precision automation systems. Its rugged yet refined construction showcases HIWIN's commitment to durability, with advanced sealing systems that protect against contaminants in harsh manufacturing environments.Ideal for semiconductor equipment, medical devices, and high-end automation, this guideway exemplifies HIWIN's philosophy of "precision in motion." The thermal-stable design maintains consistent performance, while the maintenance-friendly architecture reduces downtime - hallmarks of HIWIN quality trusted by global manufacturers.

With immediate availability from our worldwide inventory, the MGW12C delivers HIWIN's signature blend of performance and reliability. From cleanrooms to factory floors, it's the linear motion solution professionals choose when only the best will do.

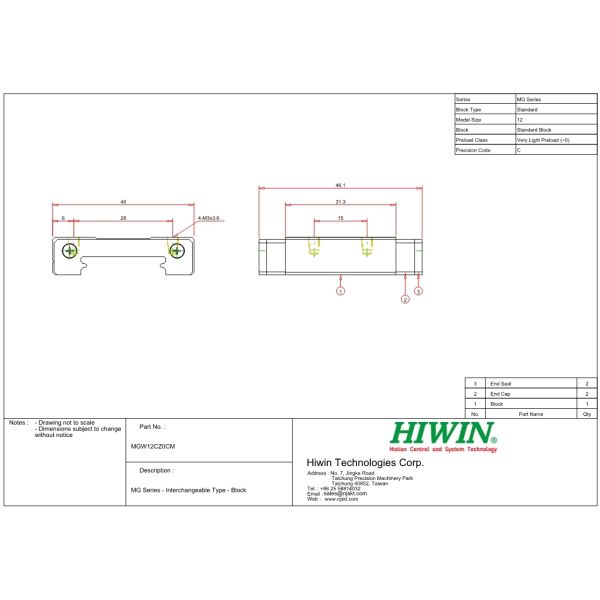

②Drawing of MGW12C
MGW12C HIWIN 3d Printer Guide Rails 12mm Size Linear Block Carriage
③Model Number of MG Series
MGW12C HIWIN 3d Printer Guide Rails 12mm Size Linear Block CarriageNote:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.
④Construction of MGW Series
MGW12C HIWIN 3d Printer Guide Rails 12mm Size Linear Block Carriage

1.Rolling circulation system: Block, rail, ball, end cap and retainer [except size 2).
2.Lubrication system: Grease nipple is available for MGW14, 15, lubricated by grease gun.
3.MGW3, 7, 9, 12 are lubricated by the hole at the side of the end cap.
4.Dust protection system: End seal (except size2), bottom seal (optional size 9,12,14,15], cap (size12,14,15).

④Features
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and
high accuracy
3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the
blocks are removed from the rail.
4.Interchangeable types are available in certain precision grades.
Block: we offers two types of linear guideways, flange and square types
Rail: we offers standard top mounting type
Model No. Block length(mm) Preload classes Bolt size Weight(kg)
MGW7C 31.2 Z0/ZF/Z1 4-M3x3 0.02
MGW7H 41 Z0/ZF/Z1 4-M3x3 0.029
MGW9C 39.3 Z0/ZF/Z1 4-M3x3 0.04
MGW9H 50.7 Z0/ZF/Z1 4-M3x3 0.057
MGW12C 46.1 Z0/ZF/Z1 4-M3x3.6 0.071
MGW12H 60.4 Z0/ZF/Z1 4-M3x3.6 0.103
MGW15C 54.8 Z0/ZF/Z1 4-M4x4.2 0.143
MGW15H 73.8 Z0/ZF/Z1 4-M4x4.2 0.215

⑥Measurement drawing
MGW12C HIWIN 3d Printer Guide Rails 12mm Size Linear Block Carriage
MGW12C HIWIN 3d Printer Guide Rails 12mm Size Linear Block Carriage
⑦HIWIN series
MGW12C HIWIN 3d Printer Guide Rails 12mm Size Linear Block Carriage
⑧top product recommendation
MGW12C HIWIN 3d Printer Guide Rails 12mm Size Linear Block Carriage
