15mm Size 3D Printed Linear Rails HIWIN MGN15C Linear Bearings And Guides

Brand Name : HIWIN

Model Number : MGN15C

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 10

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : MGN

Model Size(mm) : 15 mm

No. of Blocks per Rail : 1

Rail Mounting Type : R- Mounting From Top

Rail Length(mm) : Max 2000mm

Preload Class : Z0- Very Light Preload , ZF- Light Clearancer

Material : Std- Carbon Steel , M- Stainless Steel

Dust Protection : SS-standard

Y -Symmetrical (E1＝E2) First hole dimension : Y= Symmetrical （E1=E2)

Installation : Easy

Application : CNC Machines, 3D printer

Smoothness : Smooth

Contact Now

①15mm HIWIN MGN15C Miniature Linear Guideway Linear Bearings And Guides

As a testament to HIWIN's leadership in motion control technology, the MGN15C Miniature Linear Guideway in 15mm profile delivers uncompromising performance for demanding industrial applications. This premium linear motion solution embodies HIWIN's decades of engineering expertise, combining robust construction with exceptional smoothness for precision-critical operations.

The MGN15C features HIWIN's proprietary recirculating bearing technology, ensuring vibration-free movement and long-term reliability in automation systems, medical equipment, and high-tech manufacturing environments. Its optimized structural design provides outstanding rigidity while maintaining the compact footprint HIWIN miniature guides are renowned for.Engineered with HIWIN's advanced sealing solutions, the guideway offers superior contamination resistance for challenging operating conditions. The system's thermal-stable performance and maintenance-friendly design reflect HIWIN's commitment to quality that global manufacturers have trusted for generations.

Ideal for robotics, precision instrumentation, and semiconductor applications, the MGN15C carries HIWIN's legacy of innovation – delivering the perfect synergy of precision, durability, and performance that professionals worldwide expect from the HIWIN brand.

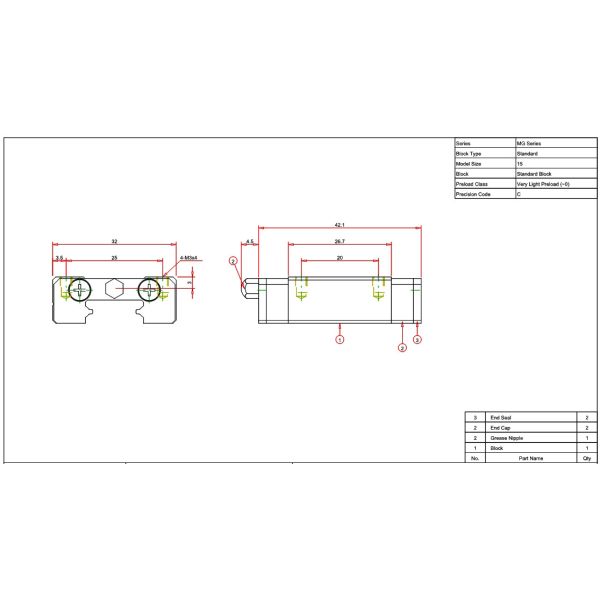

②Drawing of MGN15C

15mm Size 3D Printed Linear Rails HIWIN MGN15C Linear Bearings And Guides

③Model Number of MG Series
15mm Size 3D Printed Linear Rails HIWIN MGN15C Linear Bearings And GuidesNote:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.
④Construction of MGN Series
15mm Size 3D Printed Linear Rails HIWIN MGN15C Linear Bearings And Guides1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple is available for MGN15, lubricated by grease gun.
3.Dust protection system: End seal, bottom seal (optional size 9,12,15), cap (size12,15)
⑤Features
1. Tiny and light weight, suitable for miniature equipment.
2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and
high accuracy
3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the
blocks are removed from the rail.
4.Interchangeable types are available in certain precision grades.
Block: we offers two types of linear guideways, flange and square types
Rail: we offers standard top mounting type
model No.
block length(mm)
preload classes
bolt size
weight(kg)
MGN7C
22.5
Z0/ZF/Z1
M2*0.4P*6L
0.010
MGN7H
30.8
Z0/ZF/Z1
M2*0.4P*6L
0.015
MGN9C
28.9
Z0/ZF/Z1
M3*0.5P*8L
0.016
MGN9H
39.9
Z0/ZF/Z1
M3*0.5P*8L
0.026
MGN12C
34.7
Z0/ZF/Z1
M3*0.5P*8L
0.034
MGN12H
45.4
Z0/ZF/Z1
M3*0.5P*8L
0.054
MGN15C
42.1
Z0/ZF/Z1
M3*0.5P*10L
0.059
MGN15H
58.8
Z0/ZF/Z1
M3*0.5P*10L
0.092
⑥Measurement drawing
15mm Size 3D Printed Linear Rails HIWIN MGN15C Linear Bearings And Guides
15mm Size 3D Printed Linear Rails HIWIN MGN15C Linear Bearings And Guides
⑦HIWIN series
