HIWIN MGW7H Linear Motion Guide High Precision 3D Printed Linear Rails

Name: HIWIN MGW7H Linear Motion Guide High Precision 3D Printed Linear Rails
Brand: HIMIN
Price: 1 USD

Quality HIWIN MGW7H Linear Motion Guide High Precision 3D Printed Linear Rails for sale

Brand Name : HIMIN

Model Number : MGW7H

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 10

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : MGW-Enlarged width type

Model Size(mm) : 7 mm

No. of Blocks per Rail : 1

Rail Mounting Type : R- Mounting From Top

Rail Length(mm) : Max 600mm

Preload Class : Z0- Very Light Preload , ZF- Light Clearancer

Material : Std- Carbon Steel , M- Stainless Steel

Dust Protection : SS-standard

Y -Symmetrical (E1＝E2) First hole dimension : Y= Symmetrical （E1=E2)

Installation : Easy

Application : CNC Machines, 3D printer

Smoothness : Smooth

Contact Now

①HIWIN Miniature Linear Guideway MGW7H Miniature Linear Motion Guide

Engineered with HIWIN's renowned precision craftsmanship in Taiwan, the MGW7H Miniature Linear Guideway delivers exceptional performance in ultra-compact automation systems. This premium linear motion solution incorporates HIWIN's proprietary bearing technology, ensuring silky-smooth movement for applications where space and precision are paramount.

The MGW7H exemplifies HIWIN's commitment to quality, featuring advanced sealing systems that protect critical components while maintaining optimal performance in demanding environments. Its robust construction and thermal-stable design make it ideal for semiconductor equipment, medical devices, and high-tech automation systems requiring reliable, maintenance-free operation.

With HIWIN's strict quality control and global technical support, the MGW7H offers peace of mind for engineers designing next-generation compact machinery. Trusted by leading manufacturers worldwide, this guideway carries HIWIN's legacy of innovation - delivering the perfect balance of miniaturization and performance that professionals expect from the industry's most respected motion control brand.

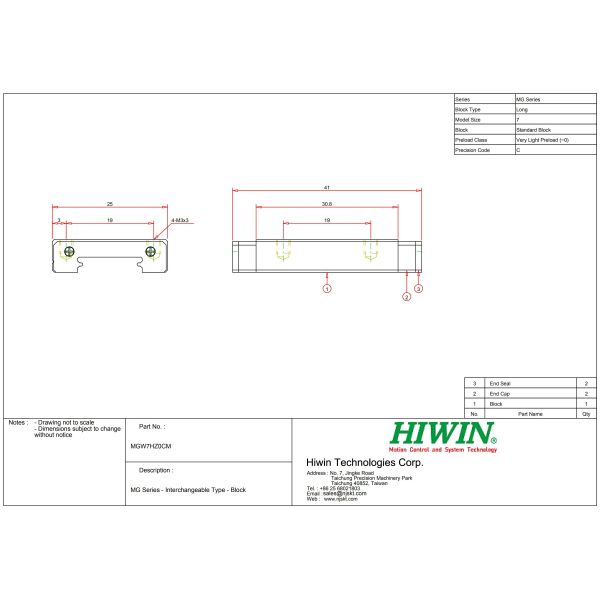

②Drawing of MGW7H

HIWIN MGW7H Linear Motion Guide High Precision 3D Printed Linear Rails

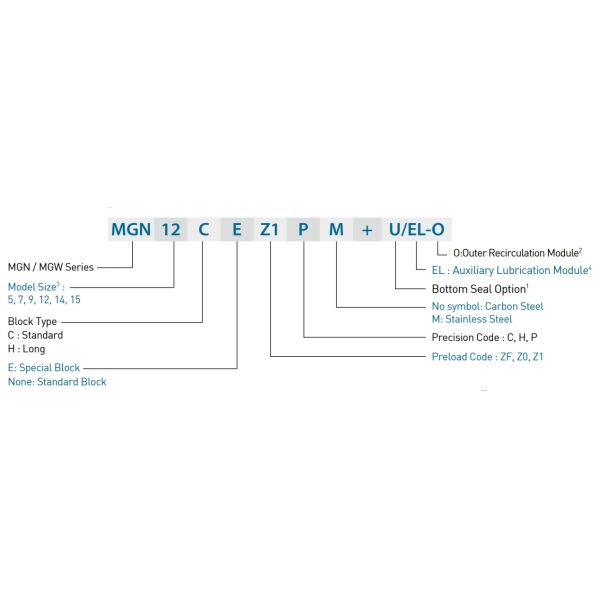

③Model Number of MG Series

Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
2. MG5 is only supplied with outer recirculation module.

④Construction of MGW Series

1.Rolling circulation system: Block, rail, ball, end cap and retainer [except size 2).
2.Lubrication system: Grease nipple is available for MGW14, 15, lubricated by grease gun.
3.MGW3, 7, 9, 12 are lubricated by the hole at the side of the end cap.
4.Dust protection system: End seal (except size2), bottom seal (optional size 9,12,14,15], cap (size12,14,15).

④Features
1. Tiny and light weight, suitable for miniature equipment.
 2. Gothic arch contact design can sustain loads from all directions and offer highrigidity and
 high accuracy
 3. Steel balls are held by a miniature retainer to avoid balls from falling out, evenwhen the
 blocks are removed from the rail.
 4.Interchangeable types are available in certain precision grades.
 Block: we offers two types of linear guideways, flange and square types
 Rail: we offers standard top mounting type

Model No.	Block length(mm)	Preload classes	Bolt size	Weight(kg)
MGW7C	31.2	Z0/ZF/Z1	4-M3x3	0.02
MGW7H	41	Z0/ZF/Z1	4-M3x3	0.029
MGW9C	39.3	Z0/ZF/Z1	4-M3x3	0.04
MGW9H	50.7	Z0/ZF/Z1	4-M3x3	0.057
MGW12C	46.1	Z0/ZF/Z1	4-M3x3.6	0.071
MGW12H	60.4	Z0/ZF/Z1	4-M3x3.6	0.103
MGW15C	54.8	Z0/ZF/Z1	4-M4x4.2	0.143
MGW15H	73.8	Z0/ZF/Z1	4-M4x4.2	0.215

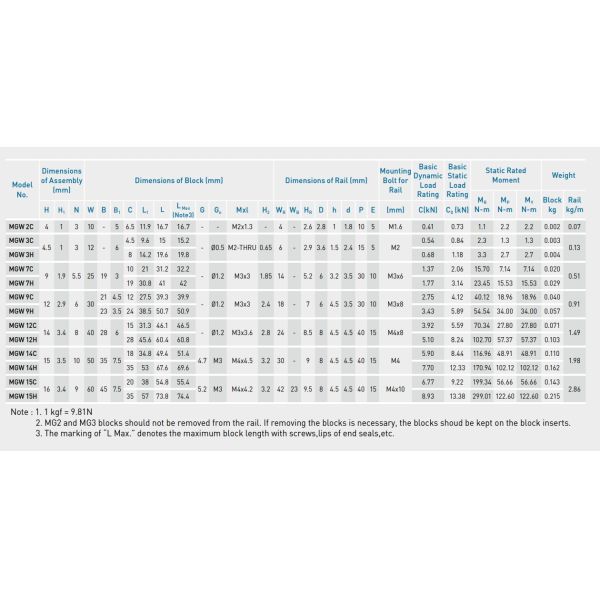

⑥Measurement drawing

⑦HIWIN series

⑧top product recommendation
