HIWIN MGN12H 3D Printed Linear Rails Z0 Preload Micro Linear Guide Standard

Brand Name : HIWIN

Model Number : MGN12H

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 10

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : MGN

Model Size(mm) : 12 mm

No. of Blocks per Rail : 1

Rail Mounting Type : R- Mounting From Top

Rail Length(mm) : Max 2000mm

Preload Class : Z0- Very Light Preload , ZF- Light Clearancer

Material : Std- Carbon Steel , M- Stainless Steel

Dust Protection : SS-standard

Y -Symmetrical (E1＝E2) First hole dimension : Y= Symmetrical （E1=E2)

Installation : Easy

Application : CNC Machines, 3D printer

Smoothness : Smooth

Contact Now

①Z0 Preload HIWIN MGN12H Miniature Linear Guideway Micro Linear Guide
Engineered to HIWIN's exacting standards, the MGN12H Miniature Linear Guideway with Z0
preload delivers uncompromising precision for critical motion applications. This premium micro linear
guide exemplifies HIWIN's commitment to excellence, featuring advanced recirculation technology that
ensures buttery-smooth operation in space-constrained systems.
Designed for applications demanding absolute accuracy,the MGN12H incorporates HIWIN's proprietary
manufacturing techniques to achieve exceptional rigidity and near-zero backlash performance.The
guideway's optimized preload configuration maintains perfect alignment throughout its service life, making
it ideal for semiconductor equipment, precision metrology, and high-end automation systems.
HIWIN's signature sealing technology' protects the precision-ground components from contamination
while requiring minimal maintenance. The MGN12H's robust construction and thermal-stable design
reflect HiWIN's decades of experience in motion control innovation.Trusted by leading manufacturers worldwide, this guideway carries HIWIN's reputation for reliability into the most demanding micro-positioning applications. From medical robotics to optical alignment systems, the MGN12H delivers the perfect balance of precision, durability, and performance that professionals
expect from the HIWIN brand.

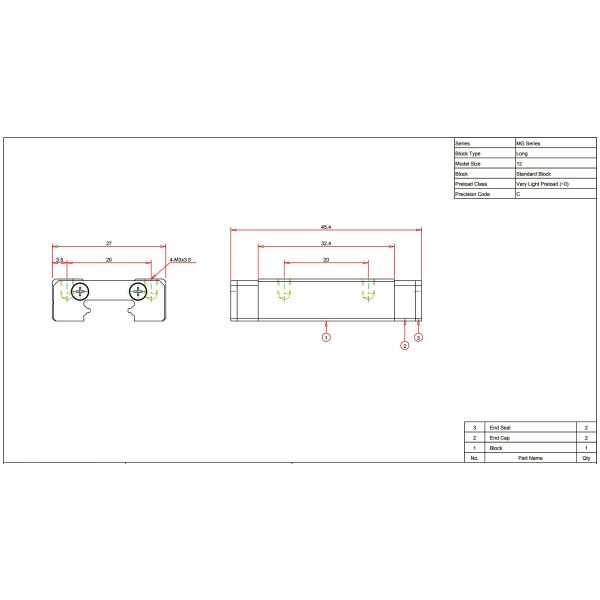

②Drawing of MGN12H
