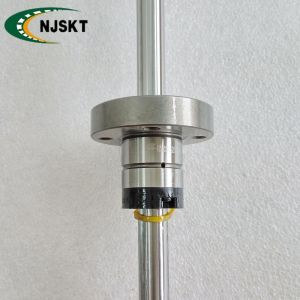

Flange Type 30mm TBI Ball Spline SLF030 Ball Spline Rolling Guides

The TBI SLF030 30mm flange-type ball spline rolling guide offers a robust and versatile mounting solution for precision motion systems requiring secure installation and optimal load distribution. This innovative design incorporates an integrated flange structure that simplifies assembly while providing exceptional stability for demanding industrial applications. The flange configuration ensures precise alignment and secure attachment, eliminating potential mounting errors that could compromise system performance. Engineered for heavy-duty applications, this ball spline guide maintains smooth linear motion while withstanding substantial moment loads and side forces. The precision-ground spline shaft and optimized ball recirculation system work in perfect harmony with the flange's rigid construction to deliver consistent performance in challenging operating conditions. TBI's attention to detail is evident in the flange's machined mounting surfaces and carefully positioned attachment points, which distribute stresses evenly across the assembly. Ideal for automation equipment, industrial robotics, and specialized machinery where reliable mounting is critical, the SLF030 series demonstrates how thoughtful engineering can enhance both functionality and ease of installation. The flange-type design provides system designers with a practical solution that combines the benefits of secure mounting with the precision motion characteristics of premium ball spline technology, making it particularly valuable for applications where vibration resistance and long-term positional accuracy are essential requirements. This configuration represents TBI's commitment to developing motion solutions that address real-world installation challenges while maintaining uncompromising performance standards.

②Features of TBI Ball Splines

③Model Number of ball screw series

④SLF,SLT Spline Shaft Cross-Sectional Shape

⑤All type of TBI MOTION Ball Spline

④Actual product photo
