EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material

Brand Name : HIWIN

Model Number : EGW25CA

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 10

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : EG

Model Size(mm) : 25mm

No. of Blocks per Rail : 1

Rail Mounting Type : R- Mounting From Top

Rail Length(mm) : Max 4000mm

Preload Class : Z0-Very Light Preload , ZA-Light Preload , ZB-Medium Preload

Material : SNCM220 Carbon Steel

Dust Protection : SS-standard

Y -Symmetrical (E1＝E2) First hole dimension : Y= Symmetrical （E1=E2)

Installation : Easy

Application : automation machines

Smoothness : Smooth

Contact Now

①HIWIN EGW25CA Linear Guideway Block Linear Bearing Slide Unit
The HIWIN EGW25CA Linear Guideway Block Linear Bearing Slide Unit is a crucial component in the field of automation. It is designed to provide smooth and precise linear motion for various automated machines and equipment.
In automated production lines, such as those in the electronics industry, it enables the precise movement of robotic arms for tasks like picking and placing small electronic components. This ensures high - quality assembly and reduces errors. In the automotive industry, it is used in automated manufacturing processes for tasks like welding and painting, where accurate linear motion is required to ensure the quality of the final product. In addition, in the field of CNC machining, the EGW25CA allows the cutting tool to move along the guideway with high accuracy, enabling the processing of complex - shaped workpieces. It also finds applications in automated packaging lines, where it helps in the smooth transportation of packages. Overall, the HIWIN EGW25CA Linear Guideway Block Linear Bearing Slide Unit plays a vital role in enhancing the efficiency and accuracy of automation processes across various industries.
②Drawing of EGW25CA
EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material
③Model Number of EG Series
EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material
④Construction of EG Series
EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material
1.Rolling circulation system: Block, rail, end cap and retainer
2.Lubrication system: Grease nipple and piping joint
3.Dust protection system: End seal, bottom seal, cap and scraper.
⑤Features of EG series
The design of the EG series offers a low profile, high load capacity, and high rigidity. It also features an equal load rating in all four directions and self-aligning capability to absorb installation-error, allowing for higher accuracies. Additionally, the lower assembly height and the shorter length make the EG series more suitable for high-speed, automation machines and applications where space is limited.
The retainer is designed to hold the balls in the block even when it is removed from the rail.

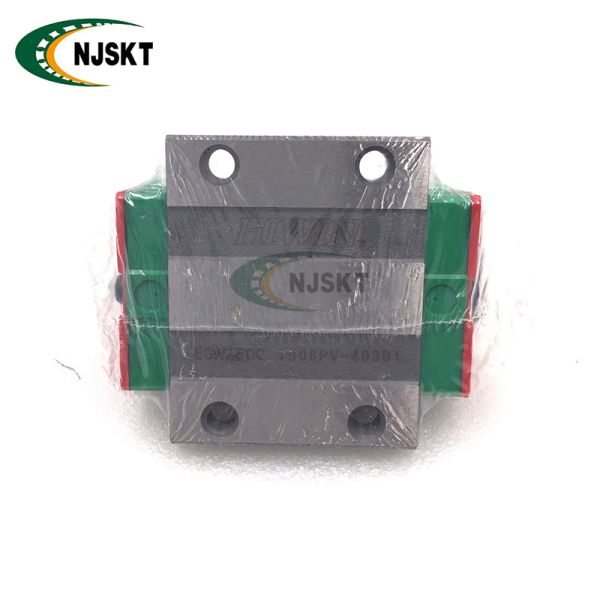

⑥Actual product photo

EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material

⑦Measurement drawing

EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material

EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material

⑧HIWIN series
EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material
⑨top product recommendation
EGW25CA Hiwin 25mm Rail Symmetrical With SNCM220 Carbon Steel Material
