SFA5020 Heavy Duty Tbi Lead Screw Industrial With Thermal Stable Design

Brand Name : TBI

Model Number : SFA5020-3.8

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 1

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : SFA

Diameter : 50mm

Lead(mm） : 20mm

Accuracy Grade : C3,C5,C7

Overall Length of shaft(mm) : Max 4000mm

Preload Grade : P0

Material : Screw: S55C Nut: SCM415H Ball: SUJ2

Threading Direction : right

Flange type : double cutting

Proudct code : F: rolled

Application : delicate application in industrial application, machine tool and automation application

Installation : Easy

Contact Now

①TBI Ball Screw SFA5020 50mm Diameter Ball Screws Ball Screw Hydrualic

The TBI SFA5020 50mm Ball Screw delivers robust performance for hydraulic applications, combining precision motion control with the durability required for demanding fluid power systems. This heavy-duty ball screw assembly demonstrates TBI's expertise in creating components that withstand the challenging conditions of hydraulic machinery while maintaining precise linear motion. The screw's reinforced construction handles high thrust loads and variable pressures characteristic of hydraulic actuators, ensuring reliable operation in industrial presses, lifting equipment, and valve control systems. Precision-ground surfaces and optimized ball recirculation work together to provide smooth movement even under substantial loads, while specialized seals protect internal components from hydraulic fluid contamination. The thermal-stable design maintains consistent performance across temperature variations common in hydraulic applications, preventing positional drift during critical operations. Engineered for continuous duty cycles, the SFA5020 incorporates wear-resistant materials that extend service life in abrasive environments with minimal maintenance requirements. TBI's attention to vibration damping and noise reduction results in quiet operation that enhances overall system performance. From heavy industrial machinery to mobile hydraulic equipment, this ball screw provides the dependable motion control that keeps hydraulic systems operating at peak efficiency, backed by TBI's reputation for quality components that deliver long-term reliability in challenging operating conditions.

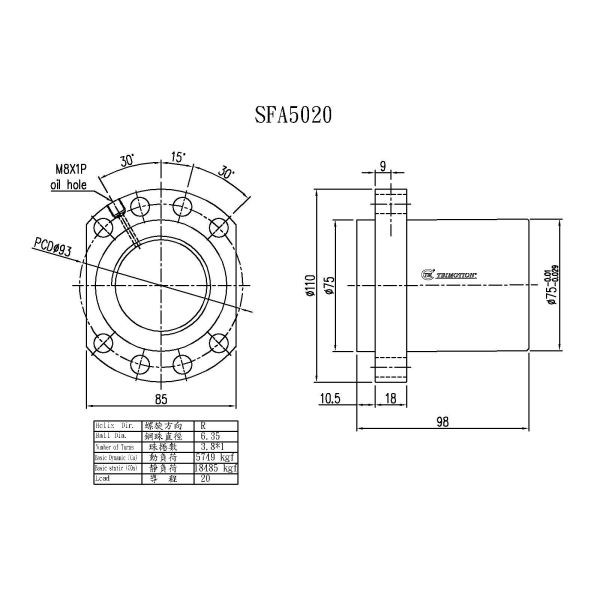

②Drawing of SFA5020-3.8
SFA5020 Heavy Duty Tbi Lead Screw Industrial With Thermal Stable Design
③ModeNumber of ball screw series
SFA5020 Heavy Duty Tbi Lead Screw Industrial With Thermal Stable Design
SFA5020 Heavy Duty Tbi Lead Screw Industrial With Thermal Stable Design
④Construction of SFA Series
SFA5020 Heavy Duty Tbi Lead Screw Industrial With Thermal Stable Design
⑤Features of Ball Screw-Internal Return Series
1. Internal return design saves more space.
2. Small driving torque only one third of ACEM ball screw.
3. High accuracy guaranteed.
4. Fine feed, can be controlled within 0.1μm.
5. No backlash, High rigidity.

⑥Actual product photo

SFA5020 Heavy Duty Tbi Lead Screw Industrial With Thermal Stable Design

⑦Measurement drawing
SFA5020 Heavy Duty Tbi Lead Screw Industrial With Thermal Stable Design
SFA5020 Heavy Duty Tbi Lead Screw Industrial With Thermal Stable Design
⑧TBI series

SFA5020 Heavy Duty Tbi Lead Screw Industrial With Thermal Stable Design

⑨top product recommendation
SFA5020 Heavy Duty Tbi Lead Screw Industrial With Thermal Stable Design
