TBI Ball Screw SFA4040 Large Loaded Ball Screw 40mm Diameter Ball Screws

Brand Name : TBI

Model Number : SFA4040-2.8

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 1

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : SFA

Diameter : 40mm

Lead(mm） : 40mm

Accuracy Grade : C3,C5,C7

Overall Length of shaft(mm) : Max 4000mm

Preload Grade : P0

Material : Screw: S55C Nut: SCM415H Ball: SUJ2

Threading Direction : right

Flange type : double cutting

Proudct code : F: rolled

Application : delicate application in industrial application, machine tool and automation application

Installation : Easy

Contact Now

①TBI Ball Screw SFA4040 Large Loaded Ball Screw 40mm Diameter Ball Screws

The TBI SFA4040 40mm Large Load Ball Screw represents the pinnacle of heavy-duty motion control engineering, demonstrating TBI's capability to deliver robust solutions for the most demanding industrial applications. This high-capacity ball screw assembly combines exceptional load-bearing characteristics with precision motion quality, reflecting TBI's deep understanding of power transmission requirements in heavy machinery and automation systems. The precision-engineered components work in perfect harmony to provide smooth linear motion even under extreme mechanical stresses, showcasing the brand's commitment to reliability in challenging operating conditions. Engineered for longevity, the SFA4040 incorporates specialized materials and surface treatments that resist wear while maintaining performance consistency through millions of operating cycles. The thermal-compensated design ensures stable operation across varying environmental conditions, preventing accuracy degradation that could impact production quality. TBI's expertise in heavy-load applications is evident in the screw's optimized ball recirculation system that minimizes friction while handling substantial axial and radial forces. Designed for seamless integration with industrial equipment, this ball screw provides the dependable performance that manufacturers trust from TBI products. From metal forming presses to large-scale material handling systems, the SFA4040 delivers the combination of strength, precision, and durability needed for critical applications where failure is not an option, reinforcing TBI's position as a leader in high-performance motion control technology for industrial applications.

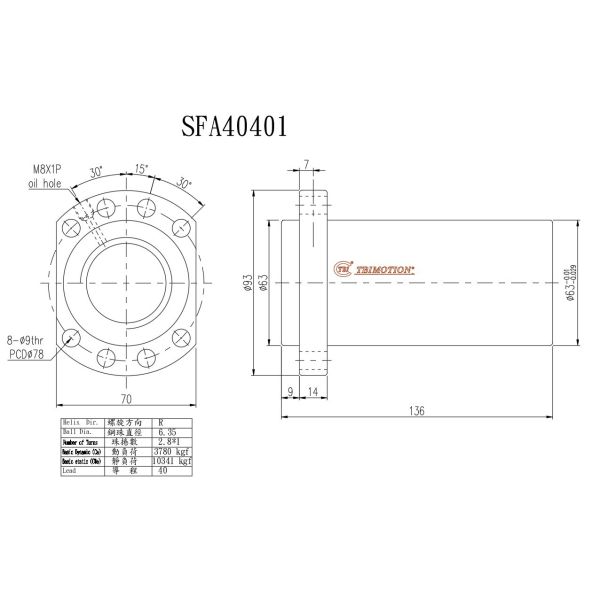

②Drawing of SFA4040-2.8

TBI Ball Screw SFA4040 Large Loaded Ball Screw 40mm Diameter Ball Screws

③ModeNumber of ball screw series

④Construction of SFA Series

⑤Features of Ball Screw-Internal Return Series
Internal return design saves more space.
Small driving torque only one third of ACEM ball screw.
High accuracy guaranteed.
Fine feed, can be controlled within 0.1μm.
No backlash, High rigidity.

⑥Actual product photo

TBI Ball Screw SFA4040 Large Loaded Ball Screw 40mm Diameter Ball Screws

⑦Measurement drawing

⑧TBI series

TBI Ball Screw SFA4040 Large Loaded Ball Screw 40mm Diameter Ball Screws

⑨top product recommendation
