BSHR01204 Recirculating Ball Screw 12mm Diameter For Industrial Applications

Brand Name : TBI

Model Number : BSHR01204-3.5

Certification : DE1924083895474

Place of Origin : CHINA TAIWAN

MOQ : 1

Price : 1-100 USD

Payment Terms : T/T,L/C,D/A,D/P,Western Union

Supply Ability : 100000 pcs / per month

Delivery Time : 1-7 work days

Packaging Details : Small or with carton box, Bulk order with Wooden box

Series : BSHR

Diameter : 12mm

Lead(mm） : 4mm

Accuracy Grade : C3,C5,C7

Overall Length of shaft(mm) : Max 4000mm

Preload Grade : P0

Material : Screw: S55C Nut: SCM415H Ball: SUJ2

Threading Direction : right

Flange type : double cutting

Proudct code : F: rolled

Application : delicate application in industrial application, machine tool and automation application

Installation : Easy

Contact Now

①TBI Ball Screw BSHR01204 12mm Diameter Recirculating Ball Screw

The TBI Ball Screw BSHR01204 exemplifies precision motion engineering with its 12mm diameter recirculating ball design, offering an ideal balance of strength and accuracy for demanding industrial applications. This robust linear motion solution incorporates TBI's advanced recirculation technology to deliver smooth, consistent movement with minimal friction, making it particularly suitable for automation systems, machine tools, and precision positioning equipment where reliability is paramount. The carefully engineered ball path ensures optimal load distribution across the screw assembly, significantly reducing wear while maintaining precise alignment throughout extended service life. Designed to handle both high thrust loads and rapid movements, this ball screw demonstrates TBI's commitment to creating components that excel in dynamic operating conditions without sacrificing positional accuracy. Its refined geometry minimizes vibration and noise during operation, contributing to quieter machine performance and improved overall system stability. The BSHR01204's durable construction resists deformation under stress while requiring minimal maintenance, providing manufacturers with a cost-effective solution for continuous operation environments. Whether integrated into CNC machinery, industrial robots, or specialized automation equipment, this recirculating ball screw delivers the dependable performance that has made TBI a trusted name in motion control technology. Its combination of precision engineering and practical durability makes it an excellent choice for engineers seeking to enhance their equipment's performance with a proven, high-quality linear motion component.

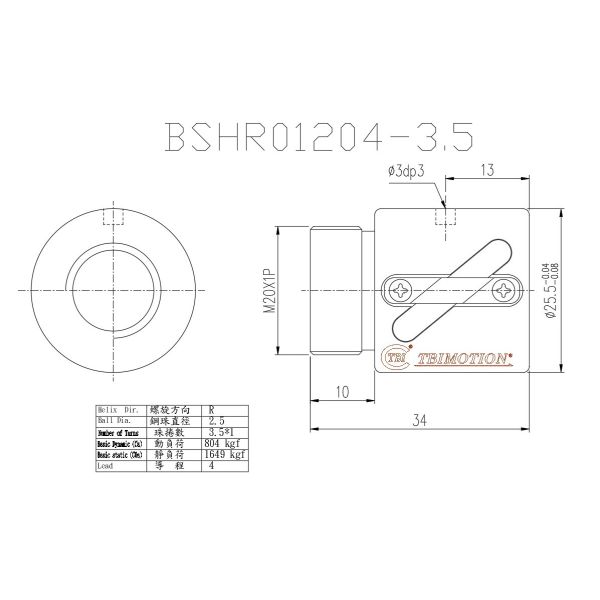

②Drawing of BSHR01204-3.5

③ModeNumber of ball screw series

BSHR01204 Recirculating Ball Screw 12mm Diameter For Industrial Applications

④Construction of BSHR Series

⑤Features of Ball Screw-Internal Return Series
Internal return design saves more space.
Small driving torque only one third of ACEM ball screw.
High accuracy guaranteed.
Fine feed, can be controlled within 0.1μm.
No backlash, High rigidity.

customized machined service.NJSKT is able to provide end machining of the ball screws according to your drawing. To help you see recommended end machinings for different types of housings. we will also machine custom ends to match a customer-supplied drawing. This image is of a drawing of the typical end machining dimensions that would be required for us to machine the ends. Other configurations are possible to machine as long as they are clearly drawn.

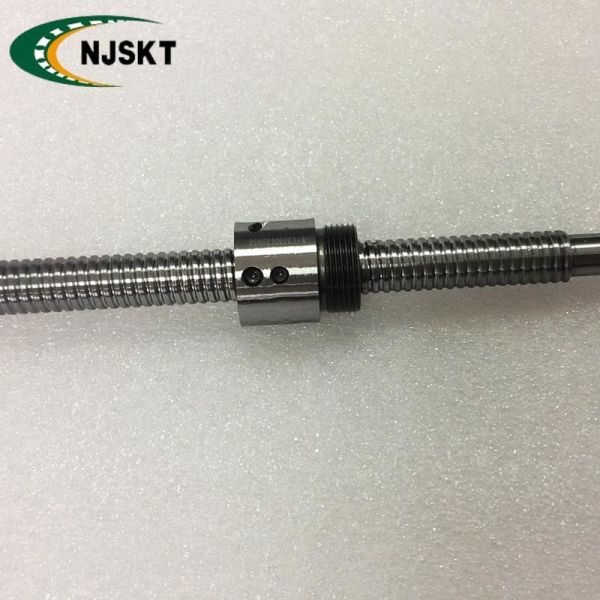

⑥Actual product photo

BSHR01204 Recirculating Ball Screw 12mm Diameter For Industrial Applications

⑦Measurement drawing

⑧TBI series

BSHR01204 Recirculating Ball Screw 12mm Diameter For Industrial Applications

⑨top product recommendation
